The faucet cartridge is a critical internal component that controls water flow. Its performance directly affects the user experience and lifespan of the faucet. When issues such as leaks, inconsistent water flow, or stiff operation arise, replacing the cartridge is often the most effective solution. Correctly identifying the cartridge model is essential to ensure compatibility with your existing faucet—using an incorrect replacement can lead to poor sealing, operational difficulties, or even damage to the fixture.
This guide provides a systematic approach to identifying faucet cartridge models, covering basic concepts, common types and specifications, characteristics of international brands, and practical identification methods.
1. Understanding Faucet Cartridges and Their Importance
A faucet cartridge is the core control mechanism inside a faucet, regulating water flow, direction, and volume through rotation or linear movement. It is constantly exposed to water pressure and temperature fluctuations, making its material quality and structural design crucial for long-term reliability.
Accurate cartridge identification matters for several reasons:
- It ensures dimensional and functional compatibility with the original component.
- Different materials (e.g., ceramic, stainless steel, rubber) perform differently under varying water conditions; selecting the wrong type may accelerate wear or cause failure.
- Premium international brands often offer superior engineering, durability, and warranty support—knowing the exact model helps you source genuine or equivalent replacements.
2. Common Types and Specifications of Faucet Cartridges
Faucet cartridges vary by material and mechanism, each suited to specific applications:
Cartridge Types
Ceramic Cartridges
The most widely used type today, made from hardened alumina ceramic discs. They offer excellent wear resistance and leak-proof sealing. High-quality ceramic cartridges can endure over 500,000 cycles—equivalent to 27+ years of daily use—and maintain consistent performance over time. Many also feature built-in water-saving capabilities, reducing consumption by 30–50%. Brands like GROHE and hansgrohe are known for their precision-engineered ceramic cartridges.

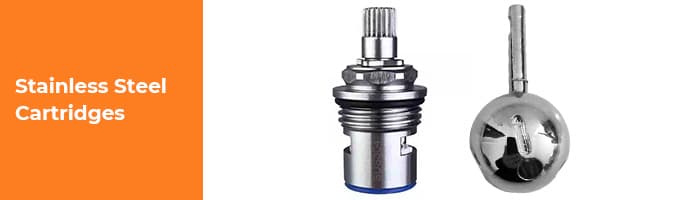

Stainless Steel Cartridges
Ideal for hard water or high-mineral environments due to their corrosion resistance and thermal stability. While more expensive, they offer extended service life in challenging water conditions. TOTO's stainless steel ball cartridges, for example, provide accurate temperature control and energy efficiency.
Rubber Cartridges
Low-cost but short-lived (typically 1–2 years). Prone to degradation from chlorine, heat, and mineral buildup, they are increasingly obsolete in modern faucets.
Ball Cartridges
Use a rotating ball with ports to mix hot and cold water. Common in older single-handle faucets, they offer smooth operation but may be susceptible to mineral buildup and water hammer effects.
Compression (Washer) Cartridges
Older technology using rubber washers pressed against a valve seat. Largely phased out due to frequent maintenance needs and inferior sealing.

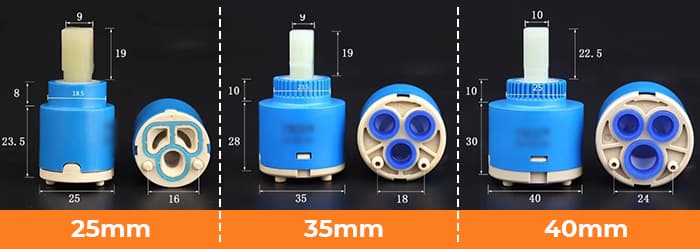

Key Dimensions
Cartridge diameter is the primary specification. Standard sizes include:
- 25 mm: Less common, typically found in compact or vintage fixtures.
- 35 mm: Widely used in residential faucets for sinks and showers.
- 40 mm: Found in larger or high-flow faucets, offering greater water volume.
Other critical measurements include overall length, stem height, spline count, and thread type—all of which must match the original for proper installation.
3. Leading International Cartridge Brands and Their Features
Several global brands set the benchmark for cartridge quality and innovation:

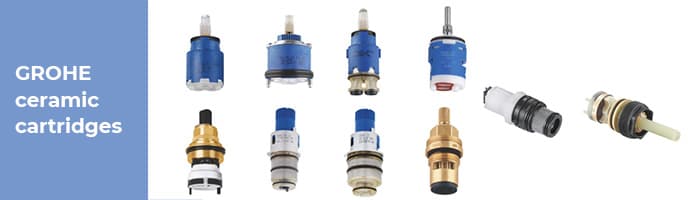

GROHE (Germany)
Renowned for its "PureWater" philosophy and BlueCore™ technology. GROHE ceramic cartridges (e.g., model 23320000 for 35 mm) feature ultra-hard ceramic discs, smooth operation, and long warranties (up to 10 years). Their cartridges often include color-coded components (e.g., blue for thermostatic functions) for easy identification.
hansgrohe (Germany)
Offers the M1 ceramic cartridge series with high-purity alumina ceramics for exceptional hardness and longevity. Their iBox Universal rough-in valve system (including the 2nd generation) supports flexible installation depths (80–108 mm) and features acoustic decoupling to reduce flow noise.
Kohler (USA)
Provides a broad range of cartridges, from standard ceramic to electronic touchless models. Their K-36008T-9 thermostatic cartridge is compact and ideal for concealed installations. Electronic cartridges require specific battery types (e.g., CR2032) and gentle cleaning protocols.
TOTO (Japan)
Known for water-efficient designs, TOTO uses ceramic disc cartridges in models like DL368 and VLB31L. Some are manufactured in Japan, others in China, tailored for regional water conditions.
MOEN (USA)
Offers reliable, cost-effective ceramic cartridges (e.g., models 58332/58331) compatible with many North American faucets. Known for user-friendly replacement and widespread availability.
KEROX (Hungary)
A major OEM supplier, KEROX produces durable 35 mm and 40 mm ceramic cartridges used by numerous faucet manufacturers worldwide.
Sedral (Spain)
Another top-tier ceramic cartridge brand, recognized for longevity and consistent performance in mid- to high-end faucets.
4. Practical Methods to Identify Your Cartridge Model
Method 1: Check for Markings on the Faucet or Cartridge
Many faucets have the cartridge size (e.g., "35" or "40") stamped on the base or handle. Once removed, the cartridge itself often bears the brand name, model number, and size (e.g., "GROHE 23320000" or "hansgrohe 97685000 M1").
Method 2: Measure Physical Dimensions
Use digital calipers to measure:
- Outer diameter (most critical)
- Total height
- Stem length and shape
- Number of splines or flats on the stem
- Thread pitch and type (if applicable)
Even a 1 mm discrepancy can prevent proper fit.
Method 3: Use the Faucet Brand and Model
Locate the manufacturer's logo and model number (often on the base or underside). Visit the brand's official website and navigate to their "Spare Parts" or "Service" section to find compatible cartridges.
Method 4: Disassemble and Inspect the Cartridge
Carefully remove the handle and cartridge. Note unique features:
- GROHE: Blue components often indicate thermostatic function.
- hansgrohe: M1 marking denotes premium ceramic construction.
- Kohler electronic: Look for battery compartments and circuit boards.
Method 5: Search by Product or EAN Code
International cartridges usually carry a unique part number (e.g., GROHE 33964000 = 40 mm ceramic). Use this code on the manufacturer's website or authorized dealer portals for exact specifications.
5. Real-World Identification Examples
GROHE Example
- Part No. 23320000 → 35 mm ceramic cartridge
- Part No. 33964000 → 40 mm ceramic cartridge
- → Visit grohe.com, enter the part number under "Spare Parts."
hansgrohe Example
- Model 97685000 M1 → Premium ceramic cartridge
- iBox Universal 2nd Gen → Adjustable depth (80–108 mm), four ½" BSP ports
- → Use hansgrohe.com's spare parts finder with your faucet model.
Kohler Example
- Model K-36008T-9 → Thermostatic cartridge for shower systems
- Electronic models → Require CR2032 batteries; avoid chemical cleaners
6. Replacement and Maintenance Recommendations
Purchasing Tips
- Prefer OEM cartridges for guaranteed fit and performance.
- Match material to water quality: Ceramic for soft water, stainless steel for hard water.
- Verify dimensions—even within the same brand, sizes can vary.
- Buy from authorized dealers to avoid counterfeits.
Replacement Steps
- Turn off water supply valves.
- Remove handle cap and mounting screw.
- Pull off handle and decorative cover.
- Unscrew retaining nut (use appropriate socket wrench).
- Extract old cartridge.
- Insert new cartridge, aligning orientation tabs.
- Reassemble in reverse order.
- Test for leaks and smooth operation.
Maintenance Best Practices
- Clean with mild soap; avoid acids, ammonia, or abrasives.
- Do not overtighten handles—ceramic discs can crack.
- In hard-water areas, install a whole-house or point-of-use filter to reduce scale buildup.
- Replace cartridges at first sign of dripping or stiffness to prevent further damage.
7. Conclusion
Identifying the correct faucet cartridge model is a straightforward yet vital task for effective repair and long-term reliability. By combining visual inspection, precise measurement, brand research, and disassembly when needed, users can confidently select the right replacement—even across premium international brands.
As faucet technology evolves toward smart controls, water conservation, and modular design (e.g., hansgrohe's iBox, GROHE's SmartControl), understanding cartridge specifications will remain essential for both DIYers and professionals. With this guide, you're equipped to maintain your faucets efficiently and extend their service life for years to come.
