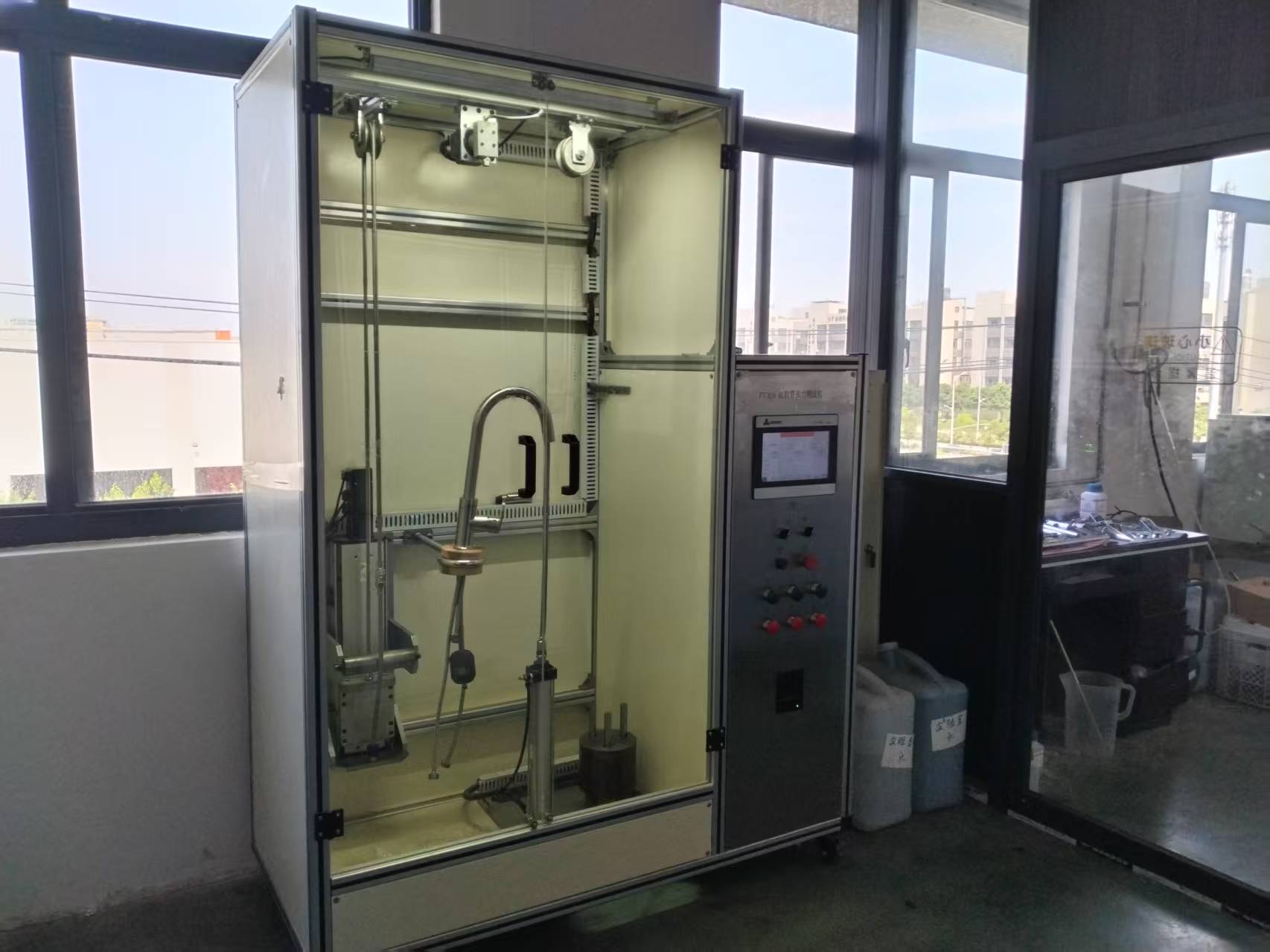

Water Hose Tensile Testing machine: AIM Faucet

Water Hose Tensile Testing machine is an equipment specifically used to test the tensile performance of the tap hose (inlet pipe), mainly used to evaluate the tensile strength, elongation rate and other mechanical properties of the hose.

Main Features

Tensile Strength Test: Measuring the maximum resistance of the hose during the stretching process

Elongation test: record the elongation before the hose breaks

Destructive testing: Limit tests can be performed up to breakage

Durability test: Simulation of repeated stretching conditions in long-term use

Technical Parameters

Test force range: usually 0-5000N (can be customized as required)

Test speed: adjustable (e.g. 10-500mm/min)

stroke: 300-1000mm

Accuracy Grade: Grade 0.5 or Grade 1

Data acquisition: Automatic recording of force-displacement curves

Test Standards

Such equipment generally meets the following criteria:

GB/T 14525-2010 General Technical Conditions for Corrugated Metal Hose

ISO 3822 - Bathroom Equipment Performance Testing Standard

ASME A112.18.1 Pipeline Equipment Standard

Application Areas

Mainly used by bathroom product manufacturers, quality inspection agencies and R & D centers to ensure that tap hoses meet safety and service life requirements.
